LS
Gooseneck

STANDARD FEATURES

  •  15,680 lb. G.V.W.R
  • (2) 7,000# G.A.W.R
  • GN 2 5/16″ Square Coupler 25,000lbs
  • Safety Chains
  • 2 – Drop Leg Jacks (10,000 lb.)
  • 2 – 7,000lb Dexter E-Z Lube Axles with Electric Brakes
  • 6 Leaf Slipper Spring Suspension
  • 5 – 16″ Black Wheels
  • 5 – 235/80R16 Load Range G – 14 ply
  • Rubrail & Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • DOT Reflective Tape
  • Front Toolbox w/ Chain Holder
  • Work Lights in Riser and Neck
  • 8′ Slide-in-Ramps
  • Flex Bridge STD 30’+
  • 12″ x 14 lb. I-Beam Frame
  • 3″ Channel Crossmembers 16″ on Center
  • 2 x 6 x 1/8″ Rectangular Tubing Outer Deck Frame
  • 2″ Treated Pine Deck
  • 102″ Wide Deck
  • Premium Powder Coated PPG paint
  • 5 year Dexter Axle Warranty
  • Spare Tire Mount
  • LED lighting
  • Dual side steps
  • Twist Control
  • All-Weather Wiring Harness 7-way

AVAILABLE OPTIONS

  •  (2) 8,000# Axles (Dexter) with Electric Brakes, Spring ride – Includes 14 ply tires
  • 5 ft Dovetail with full width Monster Ramps
  • 12” 19# I-Beam Main frame/linear ft
  • Side Toolbox
  • 2 Speed 10k Jack
  • 215/75R17.5 16 Ply (set of 5)
  • 215/75R17.5 18 Ply (set of 5)
  • Hydraulic Jack
  • HD 25k Jost Jacks
  • Winch Plate
  • Reverse Lights
  • Extra Lighting Package
  • Chain Rack
  • Top Riser Toolbox
  • Slide Track with Rachets
  • D Rings

AVAILABLE LENGTHS

 Lengths

Standard Axles

20 x 102
24 x 102
25 x 102
28 x 102
32 x 102
36 x 102
40 x 102

2 x 7000 lbs
2 x 7000 lbs
2 x 7000 lbs
2 x 7000 lbs
2 x 7000 lbs
2 x 7000 lbs
2 x 7000 lbs


AVAILABLE COLORS

  • Lonestar Grey
  • Jet Black
  • Desert Tan
  • Red
  • Lime Green
  • Orange
  • Army Green

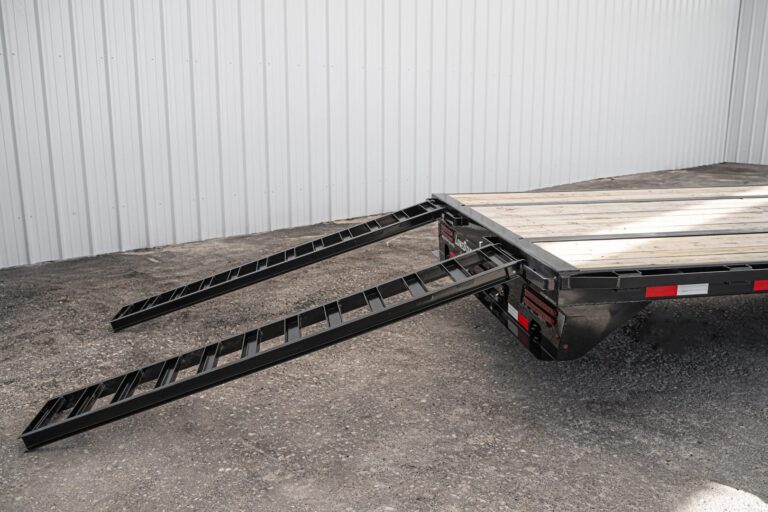

8' Slide-in-Ramps

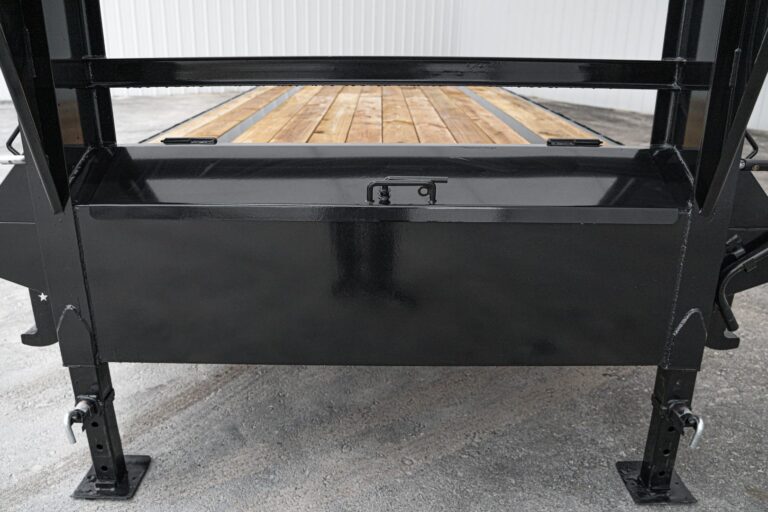

Front Toolbox

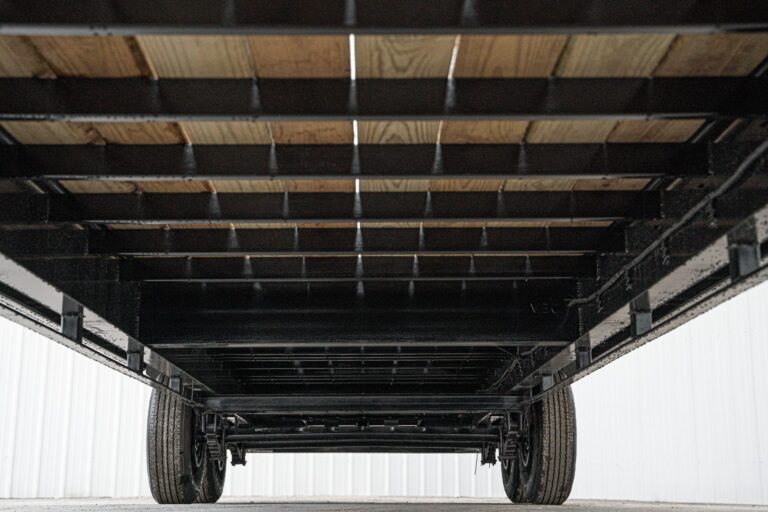

12" x 14 lb. I-Beam Frame

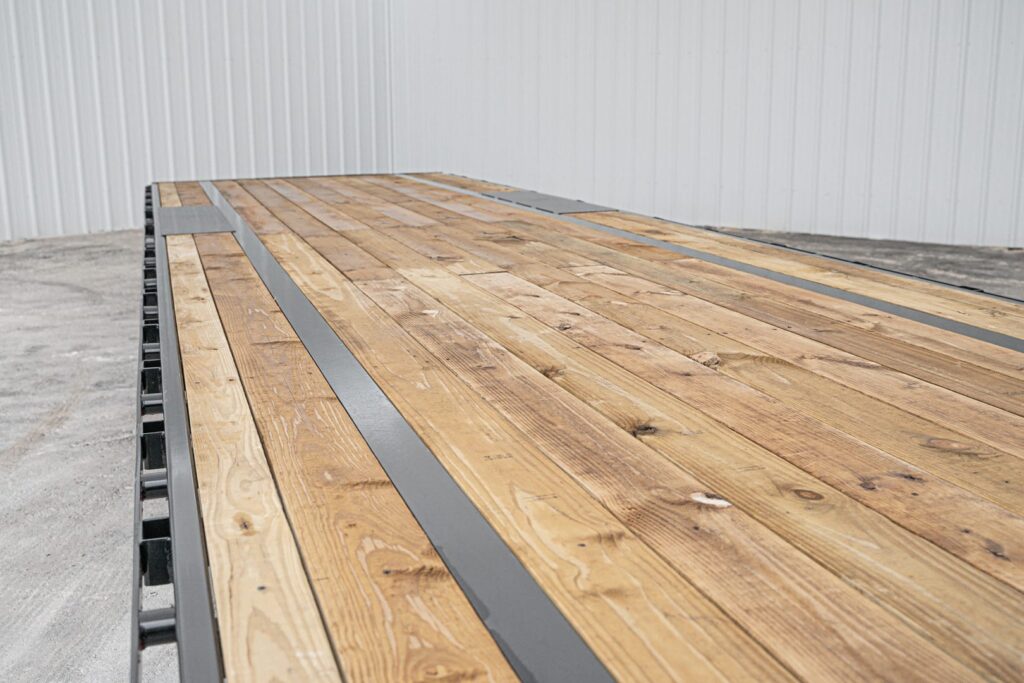

2" Treated Pine Deck

LED Lights

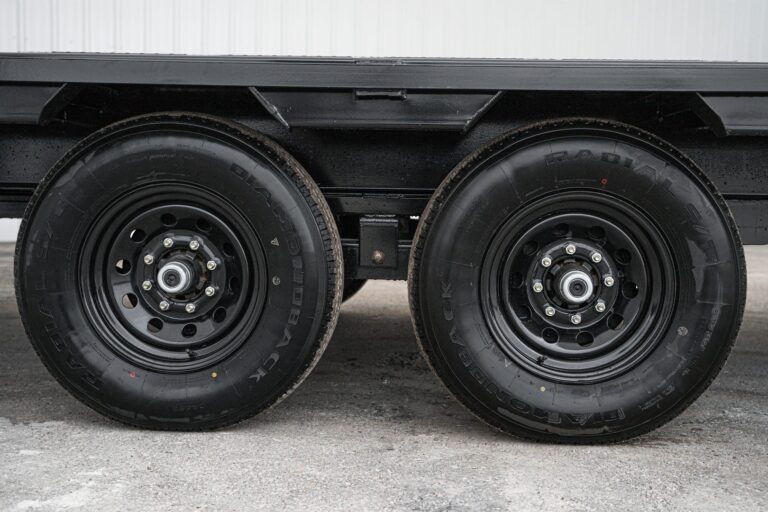

Single Wheel Setup

DOCUMENTATION

Specifications
